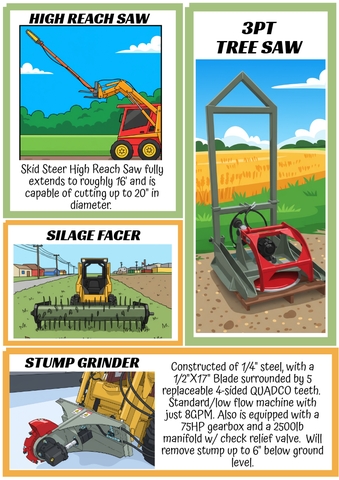

Cutting height of 14.5’ that is capable of cutting up to 20” diameter branches, total attachment weight is 280lbs

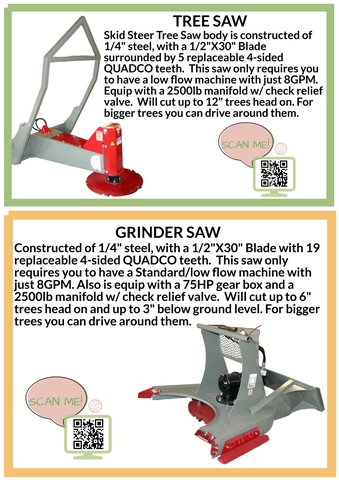

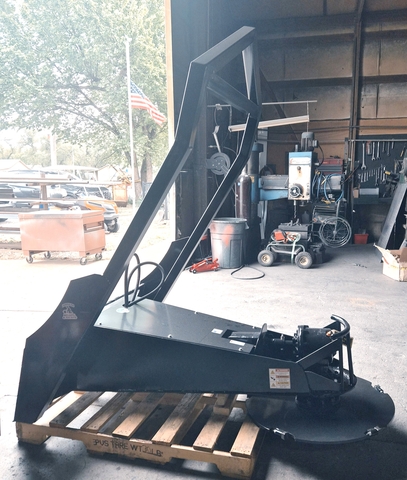

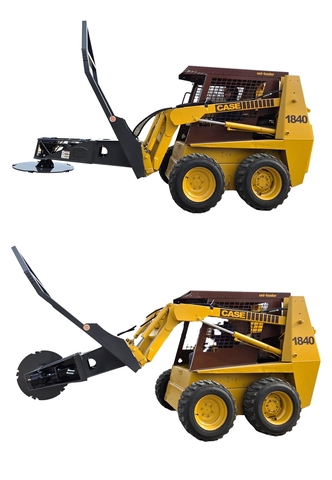

Constructed of 1/4" hot roll plate, blade is made from 1/2" hot roll plate and is 30" in diameter and has 5 replaceable Quadco teeth. Head rack made to deflect tree's coming back towards skid steer. Low flow hydraulic motor w/ 7,700 in/lbs. torque for safer cutting, w/ a 2500LB check valve mounted inside of the saw. Comes complete with 1/2" hoses and flat face couplers.
½”X30” Blade w/ 19 QUADCO 4-sided replaceable teeth.10 teeth places on bottom of blade, 5 around blade & 4 placed on top of blade. Capable of cutting up to 6" stump. Will remove stump 1.5” below the ground level.
½”X17” Blade w/ 5 QUADCO 4-sided replaceable teeth. Will remove stump a minimum of 6 inches below ground level.
QUADCO SAW TEETH
Quadco saw teeth have become the industry standard around the world; constructed of high-grade alloy steel, heat treated to the highest Rockwell rating on the market w/o becoming brittle. Concave 4-sided and bolt on. Each side will cut up to 30hrs.
