www.betterbuiltkansas.com                                        Phone 785-673-5100

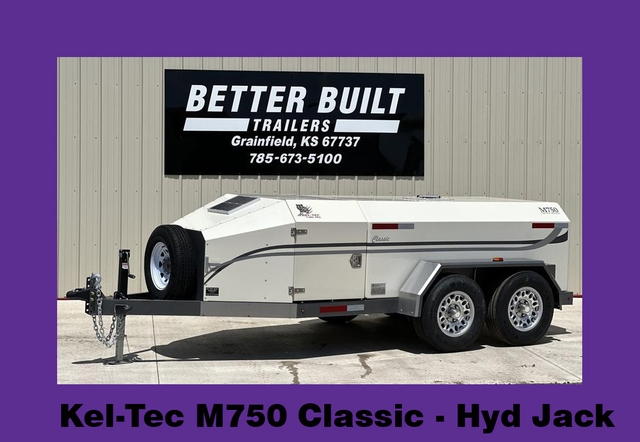

STK # 24027 - M750 Classic     - $18,900 - Hydraulic Jack
STK #24087 - X980 Platinum    - $31,500 -  Air Compressor, Hydraulic Jack
STK# 24130 - M750 Premium   - $19,900 -   8GPM 12V Fill-Rite DEF Pump w/ 50ft.                                                                                 3/4 in. Hose Reel & Auto Nozzle

"THE MOST ENVIORNMENT FRIENDLY FUEL TRAILER ON THE MARKET"

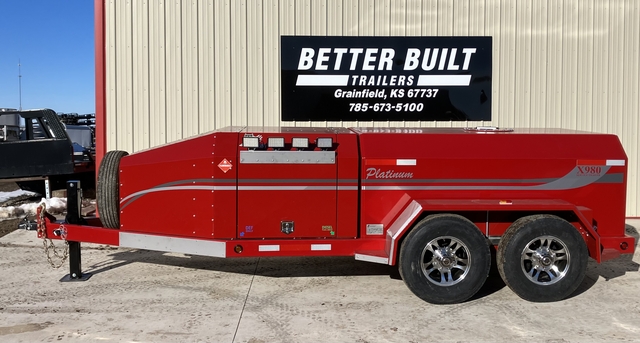

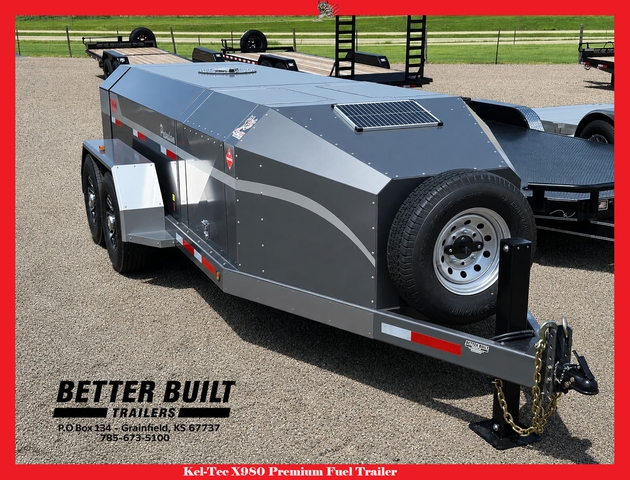

                              X980 Kel-Tec Fuel Service Trailer

                                      https://keltectrailermfg.com/

Trailer Specifications

• Super-Duty Steel Chassis
• Steel Fenders & Stainless-Steel Rock Guard
• Tandem 7K Dexter Torsion Axles
• Electric Brakes with Safety Breakaway System
• LED DOT Lighting & Reflective Tape
• All Wiring is in Conduit
• Adjustable Ball Hitch
• Heavy-Duty Tongue Jack
• Powder Coat Finish
• 235/85 R16 14 Ply Tires
• Aluminum Rims

Tank Specifications

• 980 US GAL DOT 406 Tank
• NO DEF on this trailer
• 10 Gauge steel tank
• 7 Gauge steel floor
• 3 Full Width Surge Baffles
• Tank is bolted onto frame and can be replaced if damaged
• Vented tank on top
• Access Plug in event of a rollover
• Doors open w/two 80LB lift supports and latch into open position for easy maneuverability

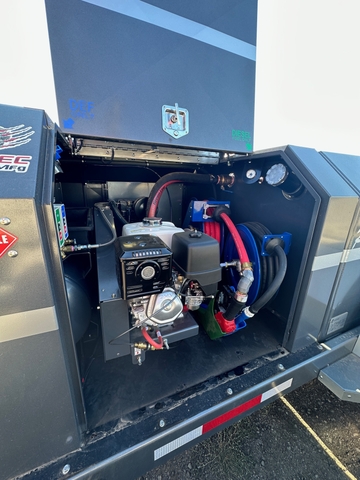

Pump Specifications

• 5 HP Honda Electric Start Fuel Pump
• Fuel Gauge
• 50' Green Line Premium Hose w/retractable reel & auto shut-off nozzle
• Tip Drain to prevent fuel build-up inside storage compartment
• In-Line Fuel Filter
• Emergency Vent

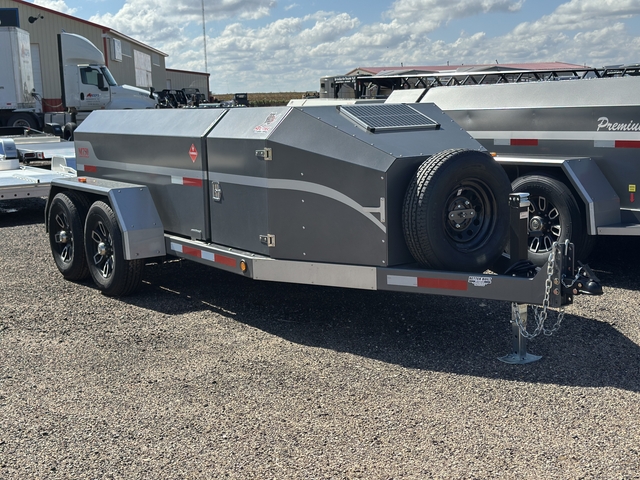

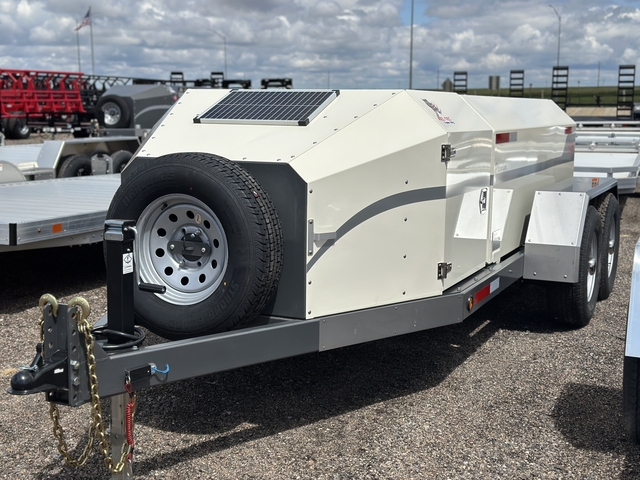

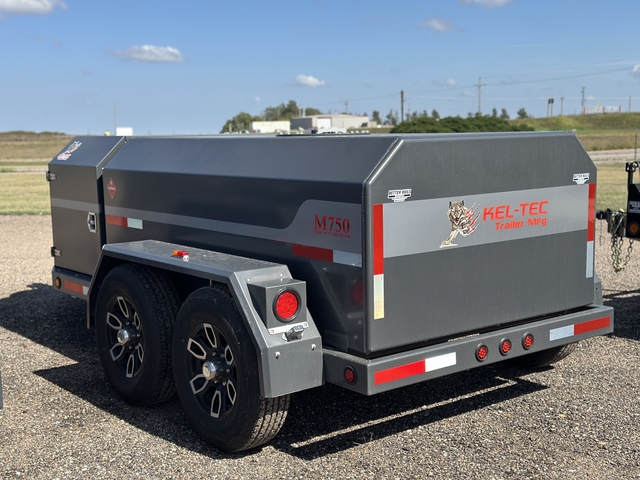

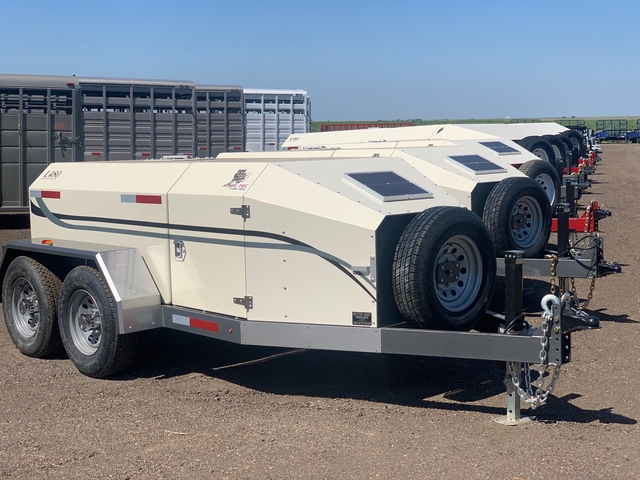

                                         L480/M750 Fuel Trailer

Trailer Specifications

•  2 x 5 C Channel Frame
•  Tandem 6,000lbs Dexter Torsion Axles w/ Electric brakes
•  Aluminum Rims w/ 225/65 R15 14 ply Tires
•  Bolt on Fenders for Easy Replacement
•  Stainless Steel Rock Guard
•  Adjustable 2 5/16 Coupler
•  7,000lbs Bolt on Jack
•  LED Lights
•  Powder Coated Paint w/ Primer

Tank Specifications

•  480 & 750 Gallons
•  DOT Approved Tank
•  2 Full Width Baffles
•  Tanks Mounted Independently to Prevent Cracking
•  Smooth Top Design to Prevent Spills in the Case of a Rollover
•  Powder Coated Paint w/ Primer

Ask About MODEL OPTION UPGRADES

• DEF 100gal (X980), 50gal (L480 & M750) Poly Tank
• 8GPM 12V Fill-Rite DEF Pump w/ 50ft. 3/4in. Hose Reel & Auto Nozzle

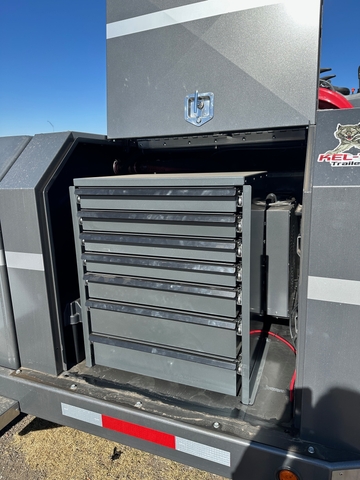

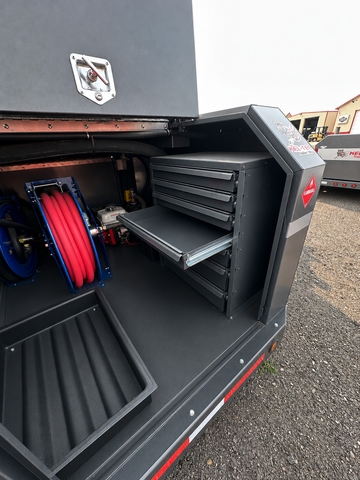

• TOOLBOX -  7 Drawer Heavy Duty Steel Toolbox
•  Roller Bearing Slides
•  18"D x 24"W x 30"H
•

(NOT AVAILABLE ON PREMIUM L480 & M750 MODELS)

HYDRAULIC JACK

> 10,000lbs Weight Rating

> 4qt. 12V Pump

> 18in. Lift

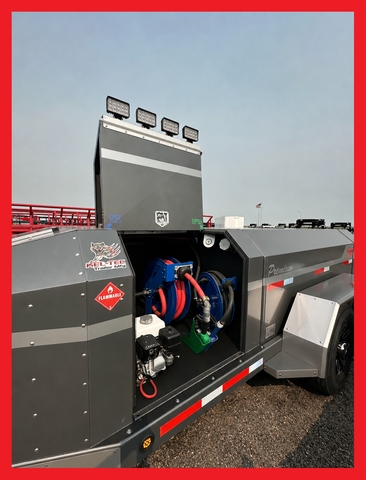

WORK LIGHTS

> 4 - 3400Lumens Flood Lights

(AVAILABLE ONLY ON X980 MODELS)

Green, Gray, Red & Black Chassis Colors Available

One Year Warranty, excluding tires, brakes and battery

***ALL WIRING PROTECTED FROM DAMAGE FOR LONGEVITY**

Better Built Trailers does not monitor federal, state or local laws regarding use of fuel trailer. Customer assumes full responsibility for legal compliance. Please consult with authorities concerning proper use prior to purchasing.
