New Condition Demo Unit AGM ReachIR LRF 35-640 Thermal Mono - Full Warranty - Can ship nationwide or hand deliver in Kansas depeding on current travel schedule.

We offer a full line of AGM, IRay, Pulsar, and Rix as well as Fat Boy Tripods.  Send a message if you're interested in this or any other items.

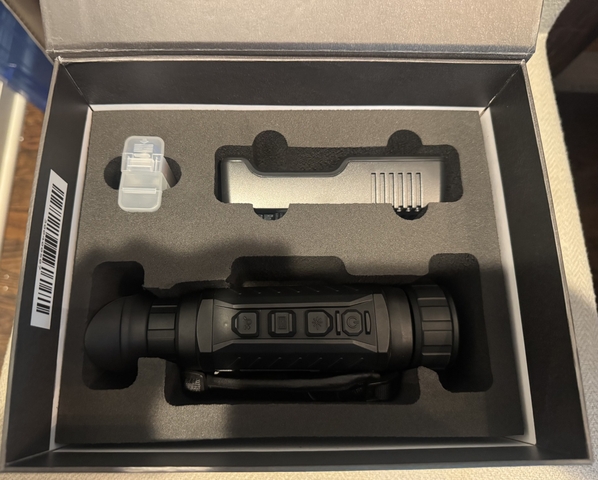

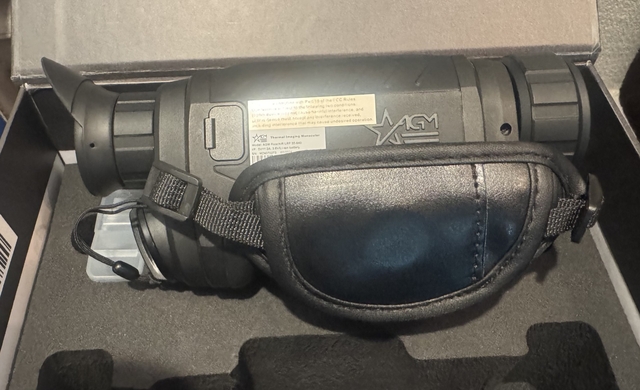

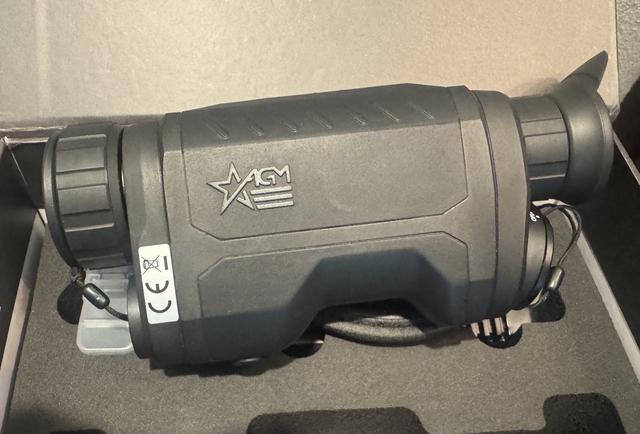

This unit is in new condition and has only been taken out of the box for demonstration purposes.  Get it today for a great bargain!

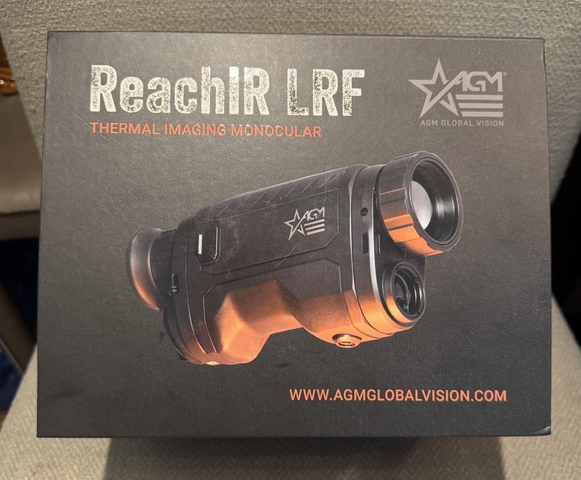

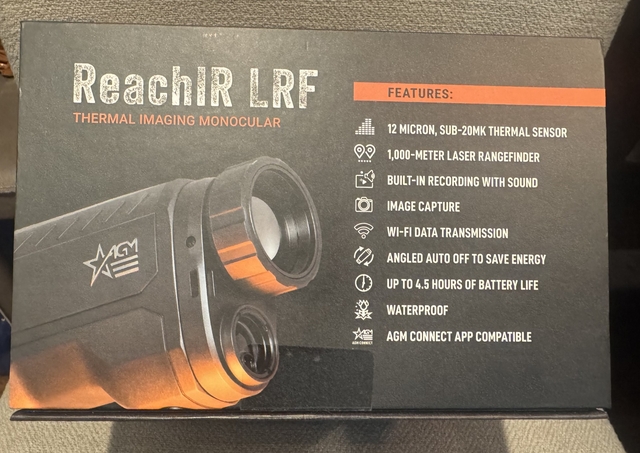

Product Info for AGM ReachIR LRF 35-640 Thermal Monocular

The ReachIR is new premium handheld observational thermal monocular series. All models come equipped with twelve micron infrared detector and a 1024×768 OLED display, for improved color rendering. The ReachIR thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire product family. Other important options include a 1,000-meter integrated laser rangefinder (LRF), robust body and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions.
New optimized image processing algorithms give thermal monocular highly optimized images and remarkable details. The ReachIRs built-in 64 GB memory also sits at the top of its class on the market, with advanced software supporting both video/audio  recording and image capture. The primary uses for these thermal monoculars include, but are not limited to: hunting, law enforcement, search-and-rescue, personal security, conservation, anti-poaching, camping, hiking and different marine applications.

Warning: California's Proposition 65

• 640×512, 12-micron sensor
• Sub-20mK thermal sensitivity
• Fast 50 Hz imaging
• Built-in 1,000-meter laser rangefinder
• New optimized image processing algorithms
• 1x, 2x, 4x, 8x digital zoom
• 1024×768 resolution, 0.39-inch OLED display
• Vide/audio recording and image capture
• 64 GB built-in memory
• Wi-Fi hotspot
• Standby mode
• Replaceable and rechargeable 18650 Lithium battery
• Up to 4.5 hours continuous running
• Auto screen-off function
• Robust magnesium alloy housing
• Waterproof
• 5-Year Warranty

Characteristics

Refresh rate: 50 Hz

Resolution: 640x512

FOV: 12.5° × 10.0°

Downloads

Data Sheet

User Manual

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Specifications

Magnification

2.0x – 16x

External Power

5 VDC/2 A, USB Type-C interface. Supports external power supply.

Dimensions

185 × 53 × 88 mm (7.28 × 2.09 × 3.46 in)

Weight (w/o batteries)

400 g (0.88 Ib)

Palettes

Black Hot, White Hot, Red Hot, Fusion

Working Temperature

-30°C to 55°C (-22°F to 131°F)

Distance Measurement

Laser Rangefinder: up to 1,000 m, ±1 m accuracy

Scene Mode

Jungle, Recognition

Picture In Picture Mode (PIP)

Yes

Hotspot

Yes

Video Recording

Yes

Audio Recording

Yes

Response Waveband

8 μm to 14 μm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Highest Temperature Spot Tracking

Yes

Standby Mode

Yes

Refresh rate

50 Hz

Resolution

640 × 512

Detection Range (6' object)

1,800 m/yd

Snapshot

Yes

Lens system

35 mm; F1.0

NETD

Less than 20 mK (25°C, F#=1.0)

Field of view (H × X)

12.5° × 10.0°

Digital zoom

1x, 2x, 4x, 8x

Diopter adjustment range

-5 to +3 dpt

Monitor

1024x768, 0.39 inch, OLED, 50 FPS

Storage

64 GB EMMC

Battery Type

One 18650 rechargeable battery (removable)

Battery Operating Time

Up to 4.5 hours continuous running (@25°C, WiFi and LRF off)

Battery Capacity Display

Yes

Protection Level

IP67 (Waterproof)
