PreView Sentry Plus Deutsch Kit

$1,400.00
Dodge City, Kansas
Login to Contact Seller Offline
Posted 2 days, 6 hours ago
Expires in 4 days, 17 hours
377 Clicks

Description

Please dont send me a check for $2500 and then you tell me to send extra money to your movers, stop this BS and get a real job.

Now if you really are a buyer and not one of this scumbags please let me know, also Will consider trading for a handgun, rifle or make an offer!!

Let me know what you have.

6two0 2five5 3796 send a text for more info if needed.

RADAR

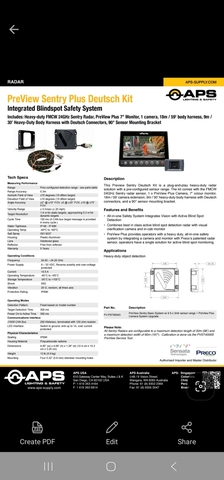

PreView Sentry Plus Deutsch Kit

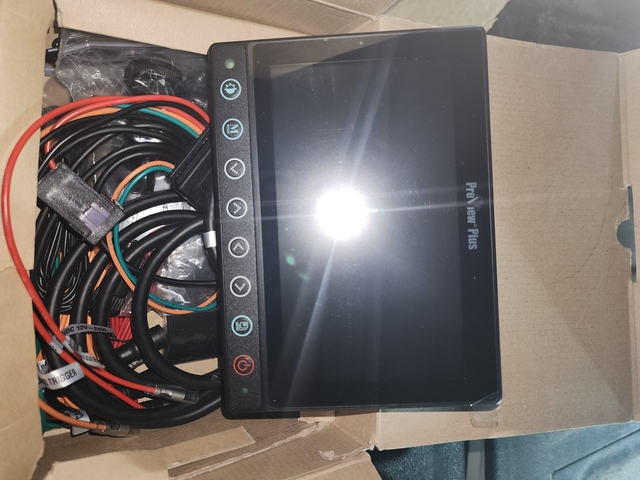

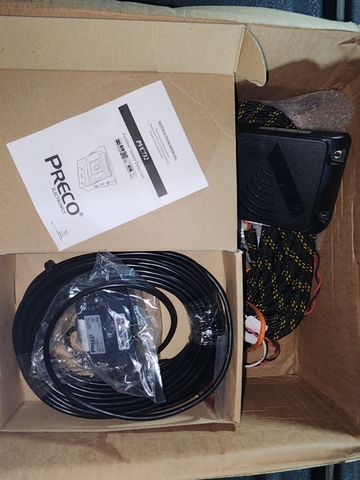

Includes: Heavy-duty FMCW 24GHz Sentry Radar, PreView Plus 7” Monitor, 1 camera, 18m / 59’ body harness, 9m /
30’ Heavy-Duty Body Harness with Deutsch Connectors, 90° Sensor Mounting Bracket
• All-in-one Safety System Integrates Vision with Active Blind Spot
Detection
• Combines best in class active blind spot detection radar with visual
clarification camera and in-cab monitor

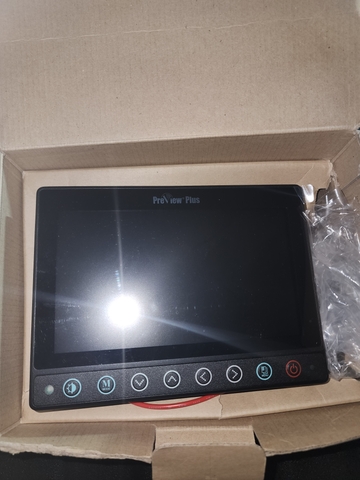

• PreView Plus provides operators with a heavy duty, all-in-one safety
system by integrating a camera and monitor with Preco’s patented radar
sensor, operators have a single solution for active blind spot monitoring.
Features and Benefits

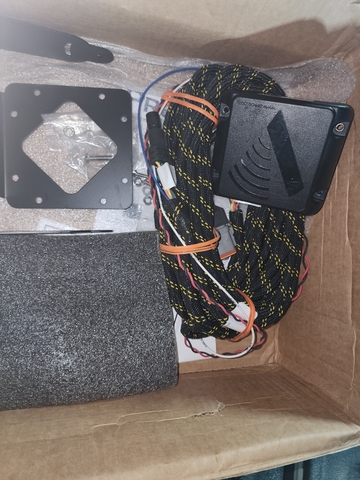

This Preview Sentry Deutsch Kit is a plug-and-play heavy-duty radar
solution with a pre-configured sensor range. The kit comes with the FMCW
24GHz Sentry radar sensor, 1 x PreView Plus Camera, 7” colour monitor,
18m / 59’ camera extension, 9m / 30’ heavy-duty body harness with Deutsch
connectors, and a 90° sensor mounting bracket.
Description
Operating Conditions
Frequency 24.00 – 24.25 GHz
Power Supply 9 – 33 VDC, Reverse polarity and over-voltage
protected
Current <0.5 A
Operating Temperature -40°C to +85°C
Storage Temperature -55°C to +105°C
Shock 50G
Vibration 25 G, random, all three axis
Protection Rating IP69K
Part No. Description
PV-PST85043 PreView Sentry Basic System w/ 4.5 x 3mtr sensor range + PreView Plus
Camera System Upgrade.
Measuring Performance
Range Prec-configured detection range - see parts table
Range Accuracy 0.3m
Azimuth Field of View ±75 degrees (10 dBsm target)
Elevation Field of View ±10 degrees (10 dBsm target)
Angle Accuracy ±2° @ ±10° FOV, ±5 @ ±30° FOV, ±10 @ ±75°
FOV
Velocity Range ± 9 m/sec (± 20 mph)
Target Resolution 1.4 m for static targets, approaching 0.3 m for
dynamic targets
Cycle Time 120 ms (A CAN bus target message is provided
in every cycle.)
Water Tightness IP 68 - IP 69K
Operating Temp -40°C to +60°C
Salt Spray ISO 9227
Housing Plastic Aluminum
Lens Hardened glass
Reflector Free from reflector
Warranty 5 Years
Tech Specs
Operating Modes
Detection Pattern Fixed based on model number
Target Detection Time 300 ms
Power On to Active Time 300 ms
Communications Interface
J1939 CAN Bus 250 Kbits/sec, terminated with 120 ohm resistor
LED Interface Switch to ground, sink up to 1A, over current
protected
Physical Characteristics
Sealing IP69K
Housing Material Polycarbonate radome
Dimensions 4.90” (w) x 4.06” (h) x 1.28” (d) (12.4 cm x 10.3
cm x 3.25 cm)
Weight 13 lb (5.9 kg)
Mounting Four 0.22” (5.6 mm) diameter mounting holes
Integrated Blindspot Safety System
Heavy-duty object detection
Applications
Please Note:
All Sentry Radars are configurable to a maximum detection length of 30m (98’) and
a maximum detection width of 60m (197’). Calibration is done via the PVST4000
