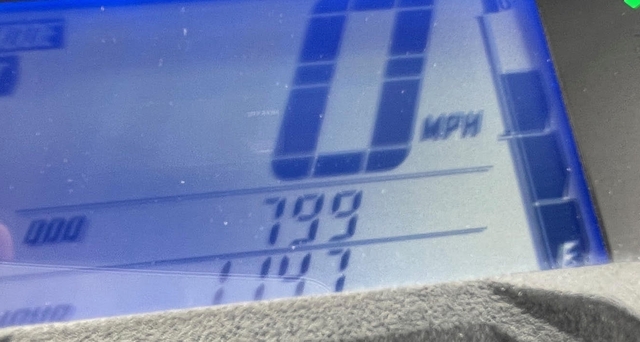

Inspected, serviced, ready to go!  799 miles, 114.7 hours.  In/out 4WD, diff lock, power steering, dump bed, tilt-out windshield.  For more info or if interested, call Superior Outdoor Power at 1-800-333-5161.

The light, compact, exciting Wolverine 1000 XT-R is ready to turn up your adventure with big 999cc parallel twin power and added XT-R capability.

Engine

• Engine Type: Parallel Twin
• Cylinders: 2
• Cooling: Liquid
• Bore: 93 mm; 3.66 in
• Stroke: 73.5 mm; 2.89 in
• Displacement: 999 cc; 60.9 ci
• Compression Ratio: 11.2:1
• Starter: Electric
• Fuel Type: Gas
• Emissions Standards: Standard Emissions
• Carburetion Type: Fuel Injected

Transmission

• Transmission Type: Continuously Variable (CVT)
• Reverse: Yes

Drive Line

• Driveline Type: Selectable 4X2 / 4X4

Technical Specifications

• Length: 115 in; 2921 mm
• Width: 63.6 in; 1615.4 mm
• Height: 77.2 in; 1960.9 mm
• Wheelbase: 83.7 in; 2126 mm
• Ground Clearance: 12.5 in; 317.5 mm
• Wet Weight: 1760 lbs; 798.3 kg
• Towing Capacity: 2000 lbs; 907.2 kgs
• Fuel Capacity: 9.2 gal; 34.8 l

Exterior

• Frame: Steel

Suspension

• Rear Suspension Type: Independent Double Wishbone
• Rear Travel: 15.5 in; 393.7 mm
• Front Suspension Type: Independent Double Wishbone
• Front Travel: 13.3 in; 337.8 mm

Wheels & Tires

• Front Tire (Full Spec): Maxxis® Bighorn 28 X 10-14
• Rear Tire (Full Spec): Maxxis® Bighorn 28 X 10-14

Brakes

• Front Brake Type: Dual Hydraulic Disc
• Rear Brake Type: Dual Hydraulic Disc

Seats

• Number Of Seats: 2

Instrumentation

• Speedometer: Standard
• Trip Odometer: Standard

Storage

• Glove Box / Dash Storage: Standard
• Bed Capacity: 600 lbs.; 272.2 kgs.

Lights

• Type: LED

Glass

• Rearview Mirrors: Standard
