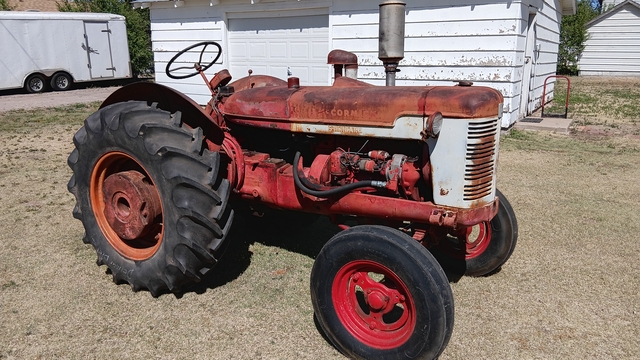

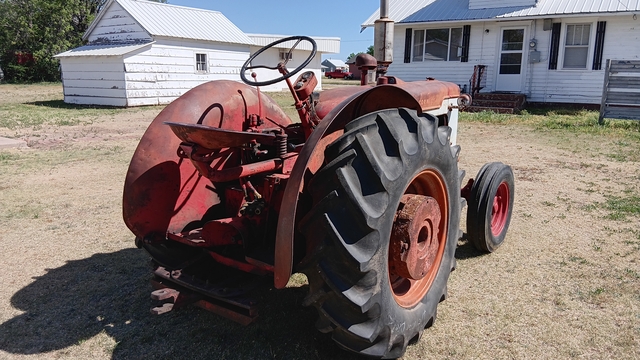

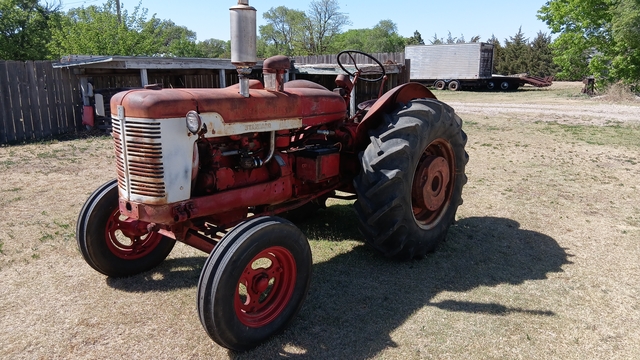

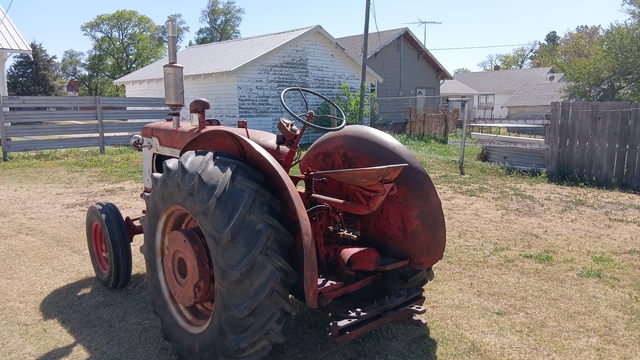

1953 McCormick Deering Super W-4                                                                       “Standard Tread Tractor”

Model SW-4

Serial # 797 --- First Serial # was 501, thus probably finished about end of 7th day of production

Previous model was the W-4

--------------------------------------------------------------------------------------------------------------------------------------

New Front Tires

New Right Rear Tube

Right Rear rim replaced

New Carb Kit

Also, an extra carb comes with the tractor

New Fuel Filter

New Battery

New Sediment Bowl

Antifreeze tests at -30 degrees

Gas Tank Professionally Cleaned

Fresh Oil & Filter Change

New exhaust pipe (Manifold to muffler)

New carb inlet tube (Between air cleaner tube and carb)

--------------------------------------------------------------

All Lights Original

Remains 6 Volt ---- Lights, starter, everything

Runs very well, starts very easily

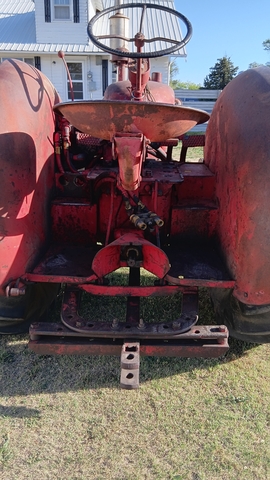

Draw Bar

PTO

Crank for “manual start” is included, for you guys with lots of muscles

$5000

Located on Friendly Easter Avenue in WaKeeney

--------------------------------------------------------------------------------------------------------------------------------------

Manufacturer:  International Harvester                                                                      Factory:  Rock Island, IL

1953 & 1954

Total built:  28,784

Original Price:  $2,100 in 1954

Chassis:  4x2 2WD

Steering:  Manual

Brakes:  Mechanical disc

Cab:  Open operator station

Fuel Capacity:  17 gallons

Electrical:  6 Volt, positive ground, generator

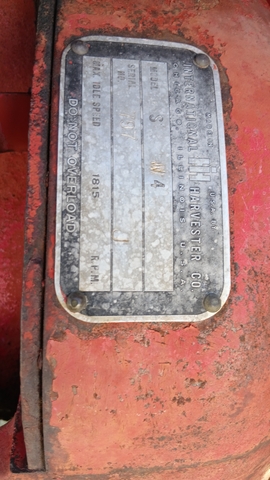

Serial Number:  Left side of tractor, on clutch housing                                                             1953 - 501

                                                                                                                                                             1954 - 2668

Engine                                      164 cubic inch 4 Cylinder, Gasoline, Liquid Cooled

                                                   Bore:                        3.50                                                                Stroke:  4.25

                                                   Air cleaner:             Oil bath

                                                   Compression:         6.1:  1

                                                   Rated RPM:             1650

                                                   Firing Order:           1 - 3 - 4 - 2

                                                   Coolant capacity:   16.5 quarts

                                                   Spark plug gap:       0.025 inches

                                                   Point gap:                0.020 inches

                                                   Valve clearance:     Intake --- 0.017 inches (Hot)

                                                                                     Exhaust:  0.017 inches (Hot)

                                                   Oil Capacity:            6 quarts, if changing filter

Transmission:                         Sliding gear, 5 forward & 1 reverse

Clutch                                      Dry Plate

Dimensions                             Wheelbase:  89.25 inches

                                                  Length:         114 inches

                                                  Width:           67 inches

                                                  Height:          81 inches

                                                  Weight:         3,875 pounds

                                                  Tires:             Front:  5.50 - 16

                                                                         Rear:  11 - 38

Power                                       Drawbar (Claimed) --- 23 hp

                                                   Drawbar (Tested) --- 29.31 hp

                                                   PTO (Claimed) --- 30 hp                                  "Transmission"    RPM:  540

                                                   Belt (Tested) --- 33.85 hp

Belt pulley                                Diameter:  9.75 inches

                                                   Width:  7.5 inches

                                                   RPM:  2601

                                                   Speed:  1019 feet / minute
