CENTER PIVOT CENTERDRIVE

$389.00
16305 r road
Cimarron, Kansas
Login to Contact Seller Offline
Posted 3 days, 8 hours ago
Expires in 3 days, 15 hours
358 Clicks

Description

*CALL FOR SHIPPING RATES BEFORE PLACING YOUR ORDER**
COMPLATIBLE : ZIMMATIC, VALLEY, LOCKWOOD, OLSON, PIERCE, REINKE

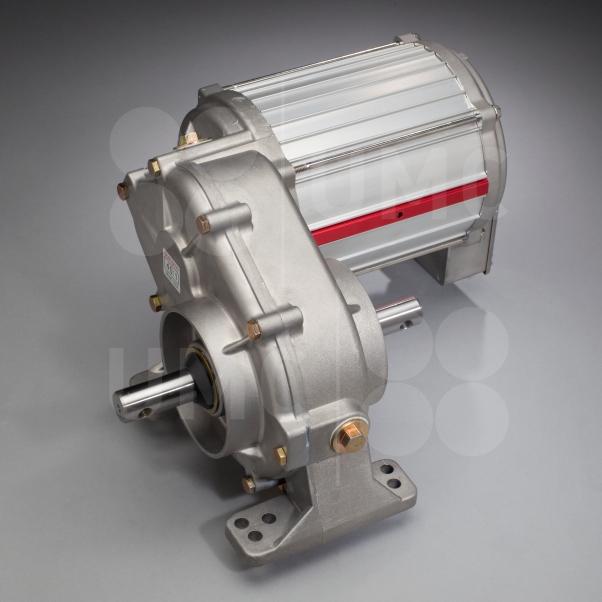

centerdrives
 center drive features an optimized helical gear design that offers longer life and quieter operation, cartridge output seals that eliminate shaft grooving and reduce oil leaks, and a single bolt junction box cover that makes installation and maintenance easier and faster

.- Designed and Engineered
- 5 year / 5,000 Hour (limitations and exclusions apply)
- 43 RPM at 60Hz operation / 34 RPM at 50Hz operation
- Cartridge output seals eliminate shaft grooving and reduce oil leaks
- Single bolt junction box cover makes installation and maintenance easier and faster
- 95% efficient helical gear reduction
- CSA and CE certified 3/4HP 3-Phase Motor
- IP 45 rated (best in the industry)
- Aluminum finned stator for superior heat dissipation
- Motor drain holes protected  for superior spray protection
- Internally vented junction box protects motor lead connections from moisture
- Magnet wire to motor lead connections covered with Teflon tubing and encapsulated with P.D. caps for superior moisture protection
- Class H wire and Class F insulation
- Thermally protected motor with automatic reset located in the junction box
- Multi-bolt mounting pattern fits all OEMs
- Top oil fill plug positioned to set the correct oil level
- Integrated crop guard for coupler shields to nest and protect oil seals from crop wrapping and debris
- Seals savers on output to protect oil seals

Disclaimer: CenterpivotParts Outlet is an independent parts supplier and is not affiliated with Valley, Lindsay/Zimmatic, Reinke, Pierce, Olson or Lockwood. These parts are not manufactured by Valley, Lindsay/Zimmatic, Reinke, Pierce, Olson or Lockwood and is not certified by Valley, Lindsay/Zimmatic, Reinke, Pierce, Olson or Lockwood or any other pivot manufacturer
